The third edition of IEC 61131-3 introduces the concept of namespaces. Namespaces group elements such as variables, function blocks, data types and libraries into coherent units. This means that elements are no longer identified solely using their names, but additionally using the associated namespace.

I first started looking at this issue in late 2010 in CoDeSys V3. The following examples have been created using TwinCAT 3 and illustrate the various areas in which namespaces have an effect.

Libraries

Identifiers for function blocks, functions and data types must be unambiguous. This applies equally to elements loaded into a project from a library. The use of multiple PLC libraries from different sources is a common cause of naming conflicts. To avoid this, library developers generally insert a prefix in front of each POU or data type identifier (e.g. MC_MoveAbsolute). The aim here is to minimise the likelihood of a naming conflict.

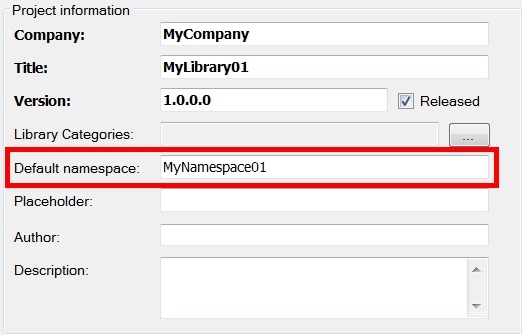

In TwinCAT 3 this problem is resolved by using namespaces. A namespace can be defined as part of the project information for each PLC project (and also therefore PLC libraries). Namespaces are not case sensitive.

Very often, a library’s namespace will simply be the name of the library (but note, however, that this is not the case in this example). If the namespace field is left blank, the namespace defaults to the library name (in the Title field).

If libraries containing elements with identical names are added to a PLC project, namespaces can be used to resolve this naming conflict.

Example:

Two PLC libraries both containing an FB_Foo component are added to a project. Any attempt to create an instance of this component will necessarily throw up an error message. For the compiler, it is not clear which of the identically-named components from the two libraries should be used.

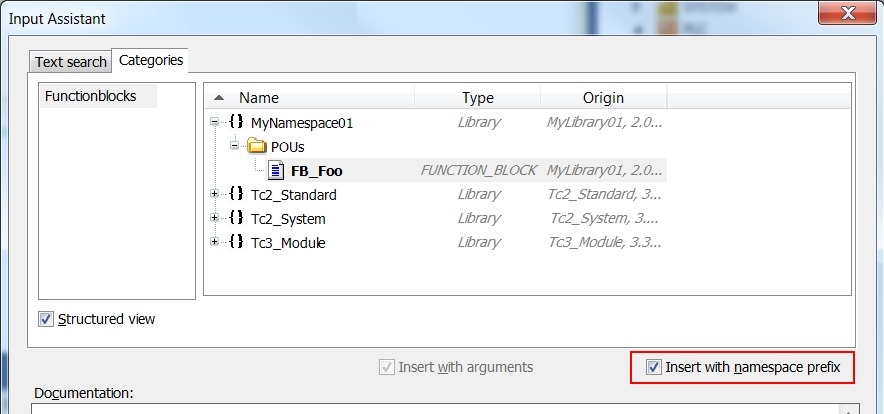

Adding in the namespace for the relevant library allows this conflict to be resolved.

If no namespace is entered, the compiler will first search within the local PLC project. It is therefore possible to instance an FB_Foo POU contained within the current PLC project. In this case, whether or not a namespace has been entered in the project information panel is irrelevant.

PROGRAM MAIN
VAR
  fbFoo1 : MyNamespace01.FB_Foo;
  fbFoo2 : MyNamespace02.FB_Foo;
  fbFoo3 : FB_Foo;
END_VAR

init_namespace attribute

The init_namespace attribute is a useful tool. If a STRING or WSTRING type variable has this attribute set, the variable is initialised with the name of the current namespace.

FUNCTION_BLOCK PUBLIC FB_Foo
VAR_INPUT
END_VAR
VAR_OUTPUT
  {attribute 'init_namespace'}
  sNamespace : STRING;
END_VAR
VAR
END_VAR

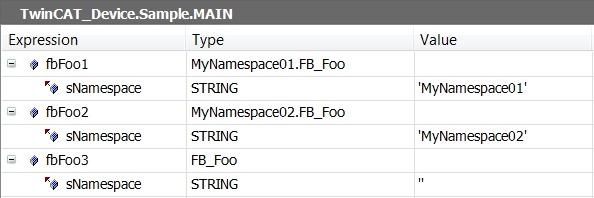

This permits the relevant namespace to be determined at runtime:

Sample 1 (TwinCAT 3.1) on GitHub

Modifying namespaces

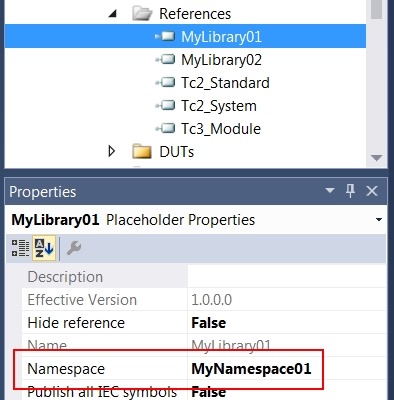

The namespace for a library is also shown in the reference properties:

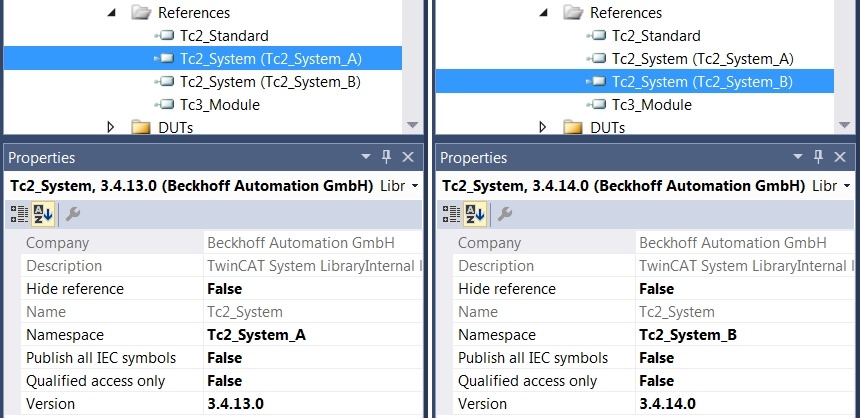

Should a namespace be ambiguous, it can be modified in these reference properties.

This makes it possible for a project to load multiple versions of the same library.

Modifying the namespace enables the required elements from different library versions to be addressed directly.

PROGRAM MAIN
VAR
  eAdsErr01 : Tc2_System_A.E_AdsErr;
  eAdsErr02 : Tc2_System_B.E_AdsErr;
END_VAR

Although the E_AdsErr enum has the same structure in both PLC libraries, they are two different data types. In the above example, this means that the eAdsErr01 and eAdsErr02 variables are not mutually compatible.

eAdsErr01 := eAdsErr02;

This assignment is rejected by the compiler with the following error message:

Implicit conversion from one enumeration type (E_ADSERR
(tc2_system, 3.4.14.0 (beckhoff automation gmbh))) to
another (E_ADSERR (tc2_system, 3.4.13.0 (beckhoff automation
gmbh)))

Global Variable List

A Global Variable List (GVL) is used to declare global variables. The name of the GVL must be unambiguous within the project. The name is not case sensitive. Each GVL is a self-enclosed space (namespace) in which global variables can be declared independently of other GVLs.

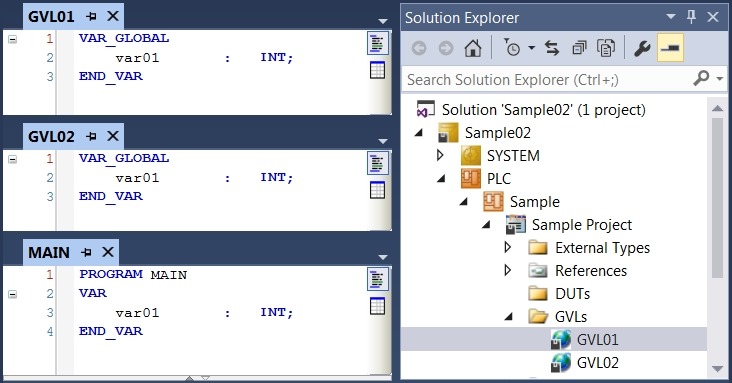

In the following example, we declare three variables. All three are called var01. Two are declared in separate GVLs (GVL01 and GVL02), the third locally in MAIN.

To allow these variables to be addressed unambiguously, the name of the GVL must additionally be placed in front of the variable name, separated by a dot.

GVL01.var01 := 1; // global variable in GVL01
GVL02.var01 := 2; // global variable in GVL02
var01 := 3;       // local variable in MAIN

If the variable var01 exists only in a single GVL, there is no need to prefix the variable name with the GVL. If, however, there is also a local variable with the same name, then the GVL name does have to be included. Alternatively, you can also prefix the variable name with just a dot on its own. This designates the global namespace.

.var01 := 1; // global variable
var01 := 3;  // local variable

The dot in front of the variable name indicates that we wish to access the global variable called var01. In this case, however, the variable must again be present in just a single GVL.

qualified_only attribute

The name of the GVL should always be used, even where it is not strictly required. If the qualified_only attribute is present in the GVL, an error message will be output if an attempt is made to address a variable without prefixing it with the GVL name.

{attribute 'qualified_only'}
VAR_GLOBAL
  var01 : INT;
  var02 : INT;
END_VAR

It is therefore always necessary to include the name of the GVL when addressing a global variable. This makes the program easier to read and makes it easier to avoid side effects between local and global variables.

Sample 2 (TwinCAT 3.1) on GitHub

GVLs in libraries

If a GVL is in a library, in addition to the GVL name it is also possible to use the namespace of the library.

In the following example, three variables, all called var01, are declared in different places:

MyNamespace01.GVL01.var01 := 1; // global variable of the GVL inside the library
GVL01.var01 := 2;               // global variable of the local GVL
var01 := 3;                     // local variable

MyNamespace01.GVL01.var01 := 1; // global variable of the GVL inside the library
.var01 := 2;                    // global variable of the local GVL
var01 := 3;                     // local variable

MyNamespace01.var01 := 1; // global variable of the GVL inside the library
.var01 := 2;              // global variable of the local GVL
var01 := 3;               // local variable

GVL01.var01 := 1; // global variable of the GVL of the library
.var01 := 2;      // global variable of the local GVL
var01 := 3;       // local variable

FUNCTION_BLOCK FB_MyFoo EXTENDS MyNamespace01.FB_Foo IMPLEMENTS MyNamespace01.I_Foo
VAR_INPUT
END_VAR
VAR_OUTPUT
END_VAR
VAR
END_VAR

TYPE E_Foo01 :
(
  eNoError := 0,
  eErrorA := 1,
  eErrorB := 2
);
END_TYPE

PROGRAM MAIN
VAR
  eFoo01 : E_Foo01;
END_VAR
eFoo01 := eErrorA;
eFoo01 := E_Foo01.eErrorA;

TYPE E_Foo01 :
(
  eNoError := 0,
  eErrorA := 1,
  eErrorB := 2
);
END_TYPE

TYPE E_Foo02 :
(
  eNoError := 0,
  eError1 := 1,
  eError2 := 2
);
END_TYPE

PROGRAM MAIN
VAR
  eFoo01 : E_Foo01;
  eFoo02 : E_Foo02;
END_VAR
eFoo01 := E_Foo01.eNoError;
eFoo02 := E_Foo02.eNoError;

eFoo01 := MyNamespace01.E_Foo01.eNoError;

{attribute 'qualified_only'}
TYPE E_Foo01 :
(
  eNoError := 0,
  eErrorA := 1,
  eErrorB := 2
);
END_TYPE

eFoo01 := E_Foo01.eErrorA + 2;

{attribute 'strict'}
TYPE E_Foo01 :
(
  eNoError := 0,
  eErrorA := 1,
  eErrorB := 2
);
END_TYPE

eFoo01 := 5;

eFoo01 := E_Foo01.eNoError + E_Foo01.eErrorA;

nVar := 1;      // variable nVar is a INT
eFoo01 := nVar;
